■ 基本信息
別名: | 單子葉發根 |
啟動子: | 35s |
復制子: | RI |
原核抗性: | Kan |
真核抗性: | G418 |
克隆菌株: | HB101 |
培養條件: | 37度 |
■ 質粒屬性
質粒宿主: | 植物 |
質粒用途: | 蛋白表達 |
片段類型: |
|
片段物種: |
|
原核抗性: | Kan |
真核抗性: | G418
|
熒光標記: |
|
■ 質粒簡介
pRI201-ON是一個單子葉植物發根農桿菌的雙表達質粒。The Ri Plasmid pRI201 is designed for the transformation and expression of target genes from plant cells. This series of binary vectors for plant transformation retains the backbone of the pRI101 vectors, including an alcohol dehydrogenase (ADH) gene-derived 5' untranslated region (5'-UTR) downstream of the cauliflower mosaic virus (CaMV promoter)-derived 35S promoter. Additionally, these vectors have a heat shock protein (HSP) gene-derived terminator in place of the nopaline synthase (NOS) gene-derived terminator, allowing higher target gene expression compared with the pRI101 vector series. Multigene transformation with a single vector can be achieved by integrating an expression cassette containing another gene (promoter + enhancer + gene of interest + terminator) into the vector's second multiple cloning site (MCS2) located downstream of the HSP terminator.
The Ri Plasmid pRI201 binary vector series offers two types of vectors: pRI 201-AN DNA and pRI 201-ON DNA. pRI 201-AN DNA contains an Arabidopsis ADH-derived 5' UTR (AtADH 5'-UTR) and is suitable for dicotyledonous plant transformation. pRI 201-ON DNA contains a rice ADH-derived 5' UTR (OsADH 5'-UTR) and is suitable for monocotyledonous plant transformation. The pRI 201-AN DNA and pRI 201-ON DNA binary vectors for plant transformation have a mutant-type replication origin (Ri ori) from the Rhizobium rhizogenes Ri plasmid. These vectors also contain a replication origin (ColE1 ori) derived from the pUC plasmid; the ColE1 ori allows high copy number replication in E. coli. The vectors' multiple cloning site, located near the right border (RB) of T-DNA, allows stable target gene integration into the plant chromosome.

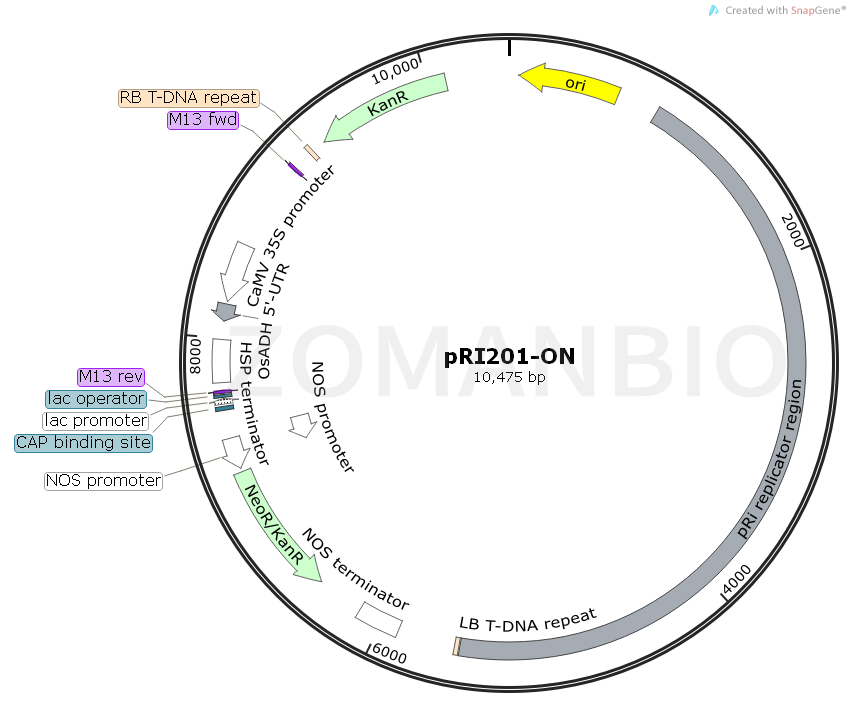

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK1857 pRI201-ON單子葉植物發根雙表達表達質粒.txt
